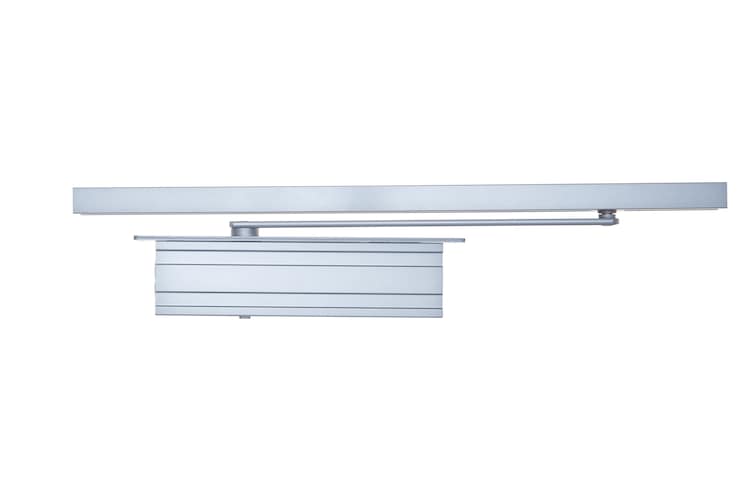

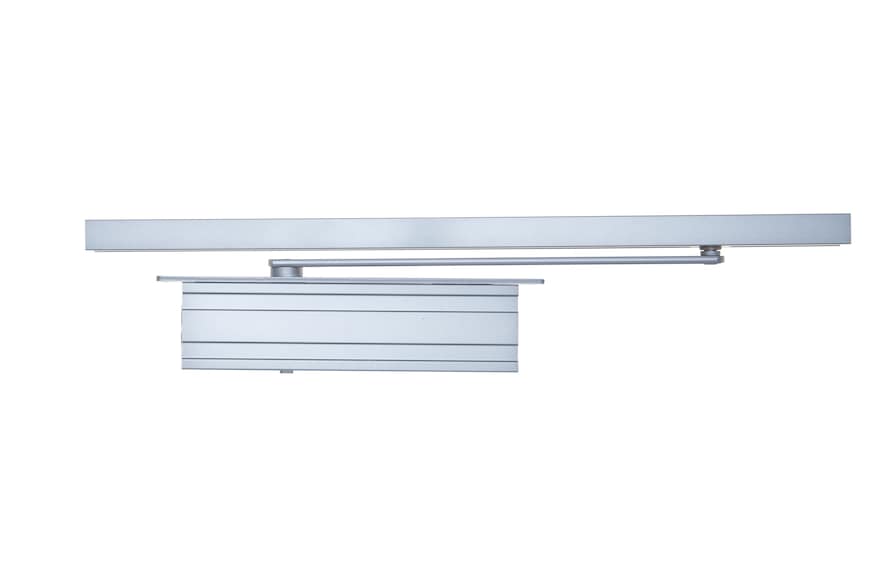

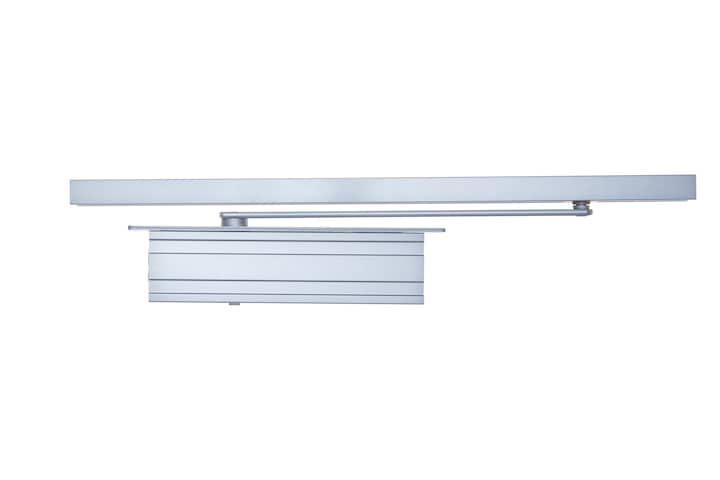

TEX703 Door Closer

The TEX703 is a recessed door closer model, suitable for fire doors of 60 kg and 950 mm leaf width.

Main features:

Adjustment of closing speed and latching speed by means of two independent valves.
Supplied with sliding guide.
The body and guide assembly is fully reversible.
Holding open of door with hold-open module MR2300 (Max. 120°).

Installation type
Concealed
Hold open function
No
Type of product
Concealed door closer
Max opening angle hinge side
120
Fire door approval
Yes
Min closing force
EN3
Durability
500000
Max opening angle non-hinge side
120
Force adjustment
No
Operating temperature
-15 to +45°C
Max closing force
EN3
Height adjustable spindle
No
Mounting position
Concealed in frame, Concealed in door
Min door thickness
50
Technology
Rack & pinion
TESA_TEX703_Technical_document_1.pdf
