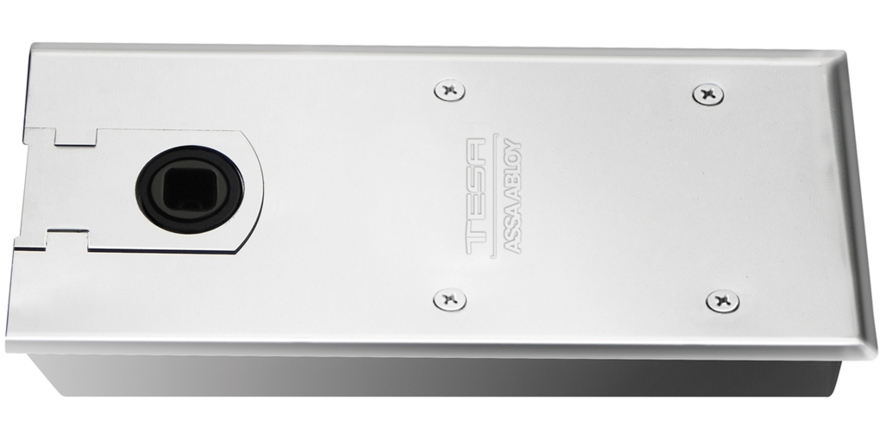

CTSU80 Door Closer

The CTSU80 floor door closer stands out for being only 40mm deep.

  • Floor mounted door closer with fixed closing force for very thin slabs.
  • Certified in accordance with the EN 1154 standard, sizes 3 or 4.
  • Suitable for doors with fire and smoke protection.
  • For single and double action doors up to 120kg.
CTSU80 characteristics:
  • The same measurements for 2 bodies according to the fixed size EN3, EN4.
  • Hydraulic control from 130° in both directions of rotation.
  • Door speed and latching speed adjustable by means of upper adjustment valves.
  • Cast iron body.
  • Adjustable in all directions inside the case.
  • Hot dip galvanised case.
  • Door closer cover and eyelets made of polished or satin-finished stainless steel.
  • Interchangeable spindle from 0 to +30 mm.
  • Available with 90° or 105° hold-open angle and without hold-open.
