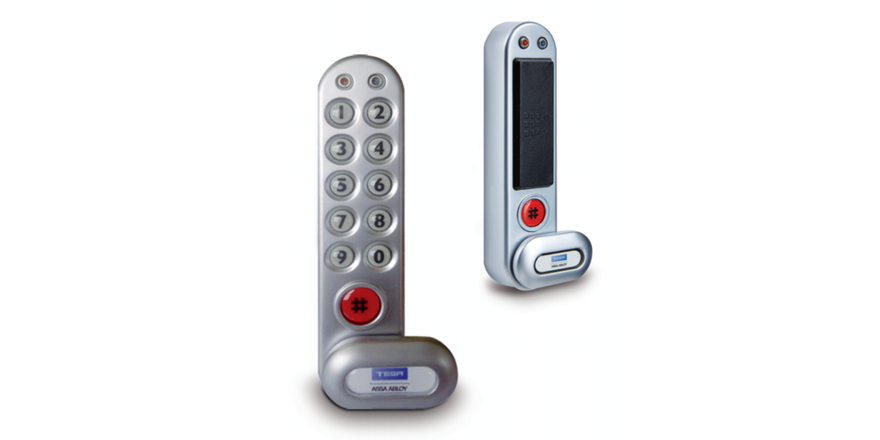

Code 1000

This lock is a standalone battery operated locking system working with a four-digit pin code. To be fitted to cabinets, lockers, in use in leisure facilities, schools, hospitals, offices ... The lock is intended for dry indoor spaces, but can be supplemented with asealing gasket for use in damp indoor environments.

• 2 functions: Private or Public (multi occupancy).
• Up to 15,000 openings.
• Valid for doors thicknesses up to25 mm.
• Supplied as standard with 2 cams and 3 shafts of different lengths(22 mm, 25 mm and 28 mm).
• IP55 rated when used with the rubber door gasket.
• Grey color as standard, black finish as an option.
• External dimensions :136 x 33 x 28 mm
• 2 Alkaline AAA cells (supplied).
• Vertical model: Suitable for right and left hand.
• Horizontal model: Not suitable for right and left hand.
